Wire Splicing Connector pack Sonoff (54 pcs)

Sonoff Quick Connector Kit (54 pieces).

The Sonoff D1-2 quick connector set is a complete solution for a variety of wire connection needs. It contains 54 pieces of connectors in a variety of configurations, allowing them to be widely used in electrical installations. Made of high-quality red copper and insulated with PC material – ensuring safety and durability.

Many possibilities

The Sonoff D1-2 set is designed for use with voltage ratings up to 250 V and amperage up to 32 A. The connectors can handle solid wires from 0.2 to 4 mm² (24-12AWG) and flexible wires from 0.2 to 2.5 mm² (24-14AWG). Thanks to the variety of types of quick connectors included, users can easily adapt them to specific installation requirements.

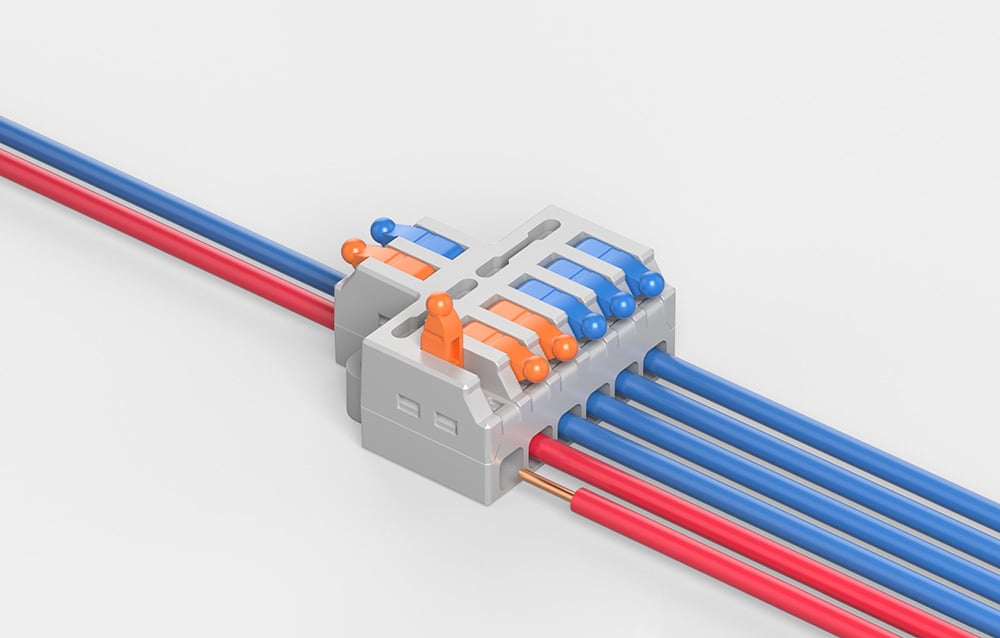

Simple and fast installation

Sonoff D1-2 quick disconnects are designed for maximum simplicity and speed of installation. The lever mechanism allows quick connection of cables, significantly reducing installation time. Technological innovations reduce the time spent working on wiring by up to 70%, which is especially beneficial in projects requiring a large number of connections.

Multifunctional use

Thanks to the various types of available quick connectors, the Sonoff D1-2 kit can be used in a wide range of applications, from domestic to industrial. It is ideal for connecting wires in electrical boxes, switches, lamps, fans and other devices.

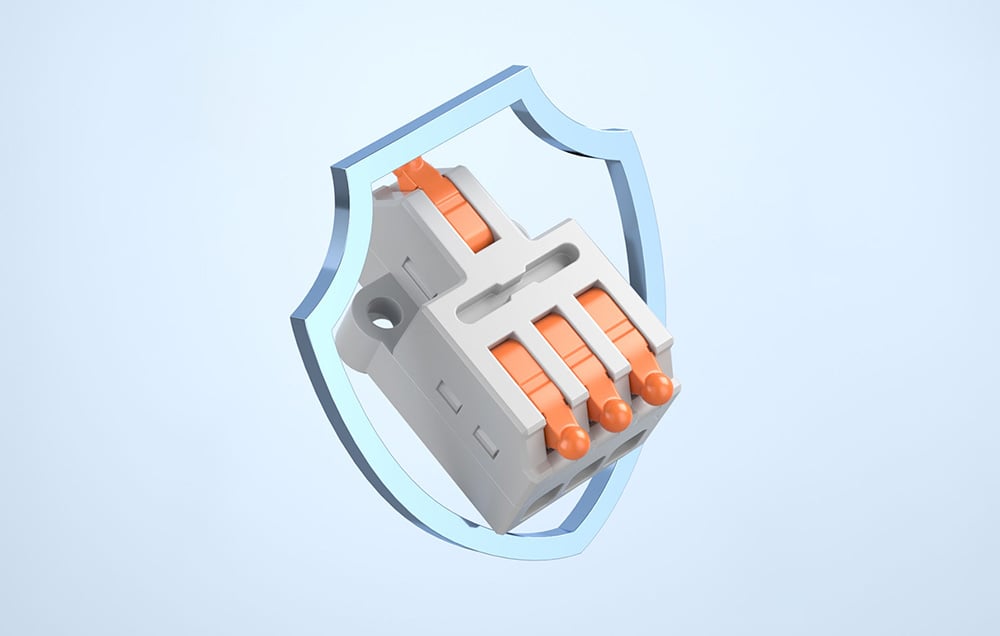

Safety and durability

Sonoff D1-2 connectors provide a high level of safety and durability. The use of red copper as a contact material guarantees excellent conductivity, while the PC insulation protects against damage and ensures long-lasting use. The product is also CE certified, which confirms its compliance with European safety standards.

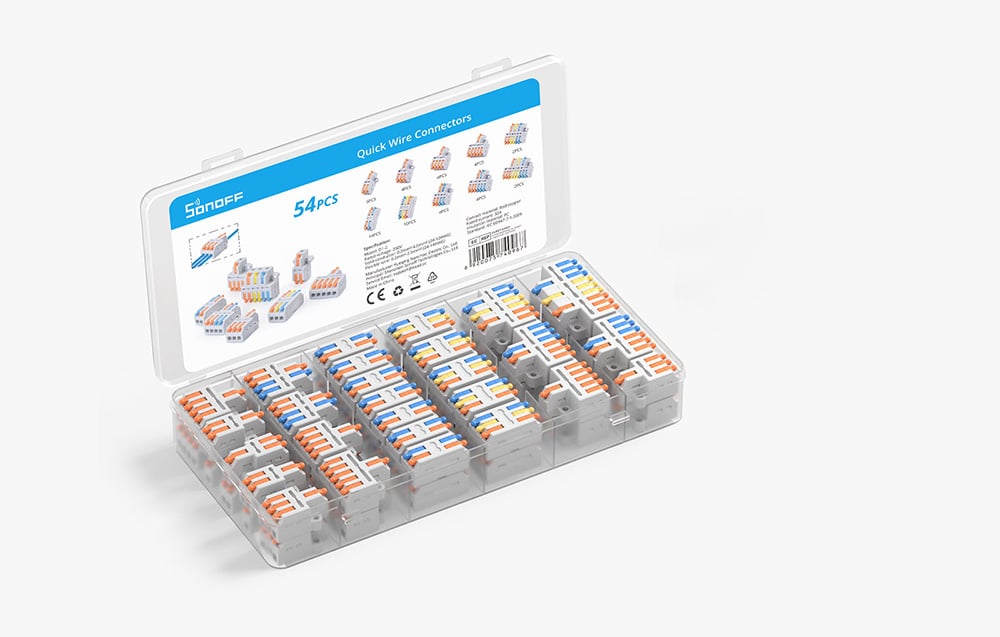

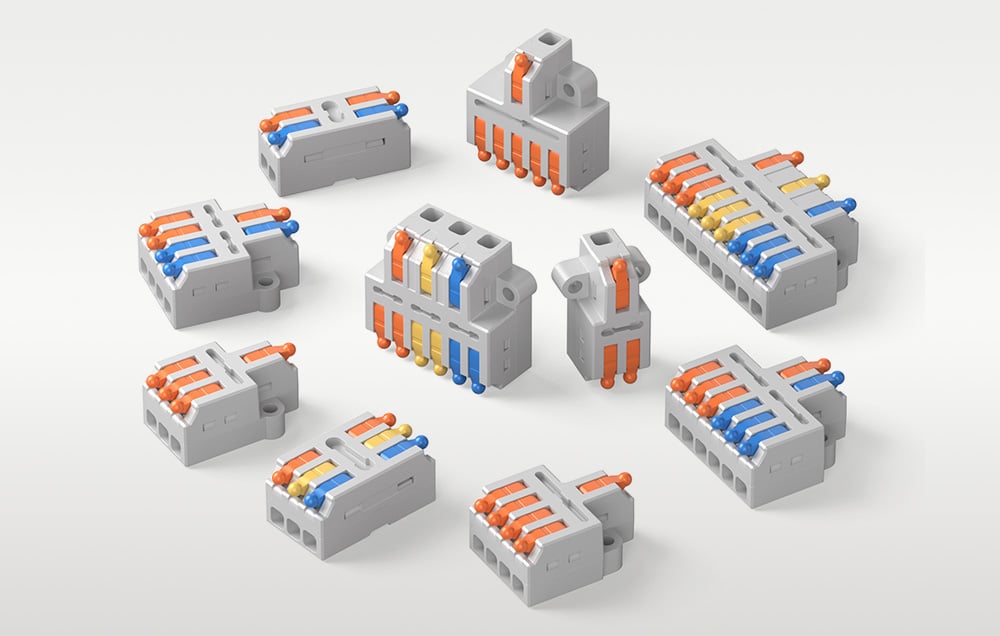

Included

• 2x quick connect 3 In 6 Out
• 2x quick connect 3 In 9 Out
• 6x quick disconnect 1 In 2 Out
• 4x quick disconnect 1 In 3 Out
• 4x quick disconnect 1 In 4 Out
• 4x quick disconnect 1 In 5 Out
• 4x quick disconnect 2 In 4 Out
• 4x quick disconnect 2 In 6 Out
• 14x quick disconnect 2 In 2 Out
• 10x quick disconnect 3 In 3 Out
